At Reid we have sustainability at heart. We want to make sure people have the choice of a more environmentally friendly method of transport at an accessible price point. The KADe truly embodies that mantra. We plant a tree for every product we sell, but we also aim to plant the seed of sustainable transport for generations to come.

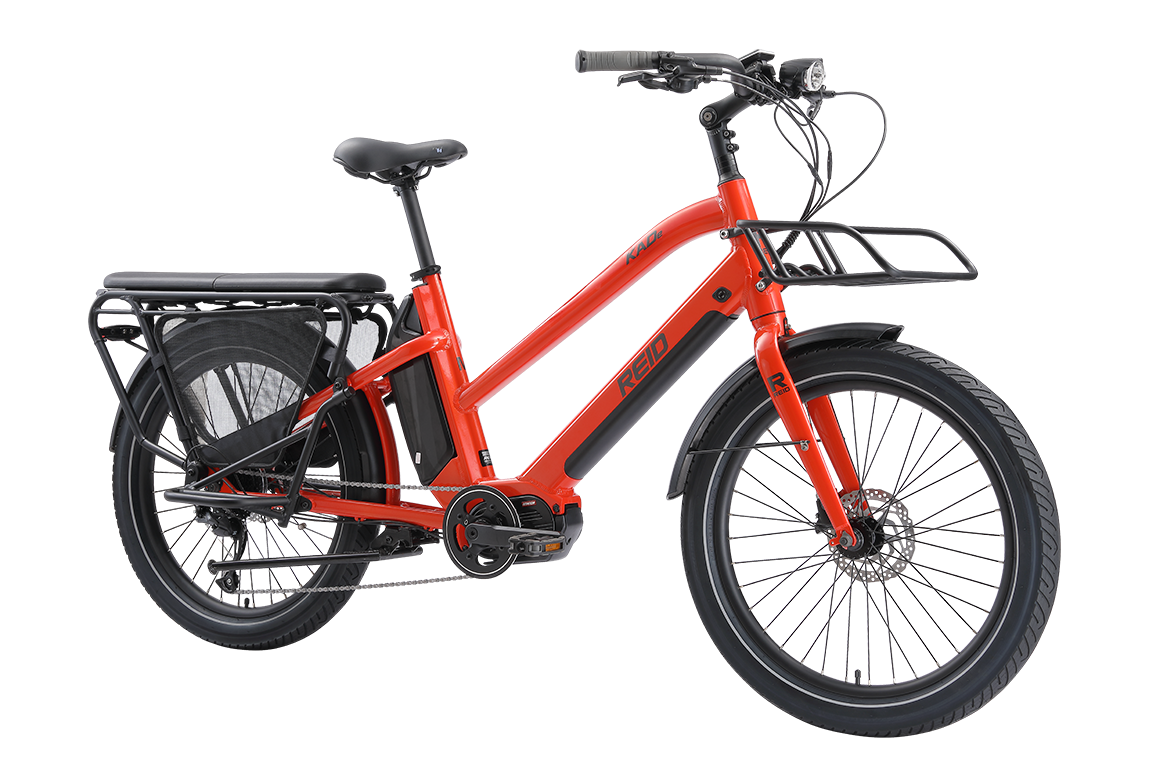

The KADe was the result of over 2 years of R&D with extensive testing. The design was finalised to give as much load carrying capacity whilst retaining a smooth and controlled ride. We chose 24” wheels paired with reinforced 3.0” tyres to both improve ride quality and grip whilst keeping the centre of gravity as low as possible.
The step through frame with relaxed seat tube angle paired to a fully adjustable stem gives a huge range of rider height variance. It’s as close as you can get to a one size fits all situation fitting riders between 5’4” and 6’4”. The KADE comes equipped with dual 48v batteries with a combined 21.6ah storage. These feed the mid drive Ananda M100 motor that has an impressive 110nm of torque. Enough power to get any load moving and keep it moving for hours!
Speaking of loads, the choice of what you carry is up to you! With a max load capacity of 100kg on the rear rack and 20kg on the front*, built in automatic front and rear lights, and plenty of accessories the KADe has true versatility. The school run? The weekly shop? The trip to the beach? Or even use the KADe as a delivery vehicle. It will handle them all. Obviously with the extra demand of cargo comes the extra demand on the bikes components. We have equipped the KADe with 9 speed Shimano Altus shifting and Shimano MT200 hydraulic disc brakes that you can always count on.
The KADe is a big hit with our team and their families, we’re sure you’ll find the same.
Complete with mudguards, rear carrier rack and front rack, other add ons are optional.
*No passengers should sit on the rear rack without the optional padded seat and wheel guards.
*Total mass not to exceed 200kg, including the bike.
Please make sure to familiarise yourself with eBike and eScooter safety information before charging or using your new Reid. You can view and download user manuals and safety instructions here.
Our KADe Cargo eBike Orange includes the industry-leading Reid Warranty: lifetime on frame and rigid forks and 2 years on non-consumable parts.
Frame | 6061 aluminium long tail |
---|---|
Fork | Steel 24" |
Handlebars | Reid 31.8mm alloy riser 680mm 34 deg sweep |
Stem | Reid 31.8mm alloy A head adjustable 90mm |
Pedals | Reid nylon platform 9/16" |
Saddle | Selle Royal Freeway |
Seatpost | Reid alloy 30.4mm |
Cassette | Shimano CS-HG201-9 9 speed 11-32T |
---|---|
Bottom Bracket | Sealed bearing |
Chain | KMC Z9 |
Brake Lever | Shimano MT200 |
Front Derailleur | N/A |
Rear Derailleur | Shimano RD-M370 Altus 9 speed |
Shifters | Shimano SL-M2010-R Altus 9 speed |
Front Brakes | Shimano MT200 Hydraulic Disc Brakes with 160mm rotors |
Rear Brakes | Shimano MT200 Hydraulic Disc Brakes with 160mm rotors |
Chain Set | Ananda 170mm 38T |
Wheelset | Reid 24" double wall 36h disc |
---|---|
Tyres | Kenda K1032 24x3.0" |
Front Hubs | 36H 6 bolt disc |
Grips | Reid Ergo comfort |
---|---|
Accessories | Mudguards, lights, front rack, rear rack with foot rests |
Motor | Ananda M100 48V 250W ,110NM torque |
---|---|
Display | Ananda D10 LCD |
Battery | Down Tube 48V 9.6AH |
We reserve the right to modify product specifications and details without prior notification.
Size | Range (cm) | Range (ft & in) |
---|---|---|
Unisize | 162 - 193 | 5'4" - 6'4" |
If you are outside of the size range or unsure of the right fit for you, give us a call or come in and visit your local store to talk about your best options.
